Valve Operators and Accessories

Manual Actuation

Bevel gear:

• Bushing/thrust nut allows actuation at floor level out of the water with a sliding valve stem
• Provides a greater mechanical advantage with reduced gears
• Forms right angle from stem which enables the hand wheel to be extended closer to operator and allows safe offset applications

Rack and pinion gear box:

• Worm gear (self-locking mechanism) allows for safer, easier operation and infinite adjustment of valve. Gear box helps valve hold position and not settle over time.
• Components are easy to replace for quick, economical maintenance
• Forms right angle from stem which enables the hand wheel to be extended closer to operator and allows quick operation

Automated Actuation

Electric actuator:

• Features remote operation and controlled torque settings for easy action

Pneumatic actuator:

• Allows faster, remote actuation of the valve

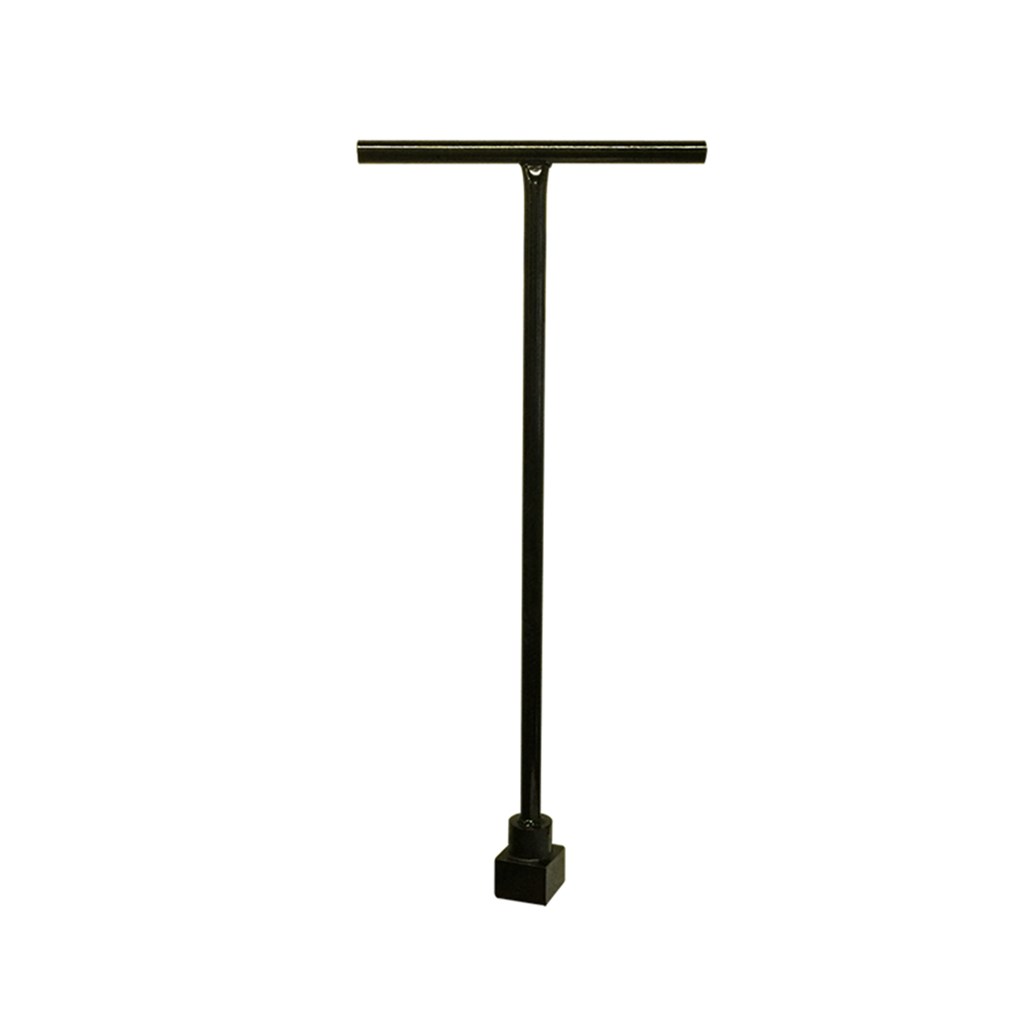

T-Wrench

Features & Benefits:

• Lightweight and portable
• Simple design costs less and requires less maintenance

Material:

• Steel
• Stainless steel

Customizations:

• Custom length t-handles tailored to your application

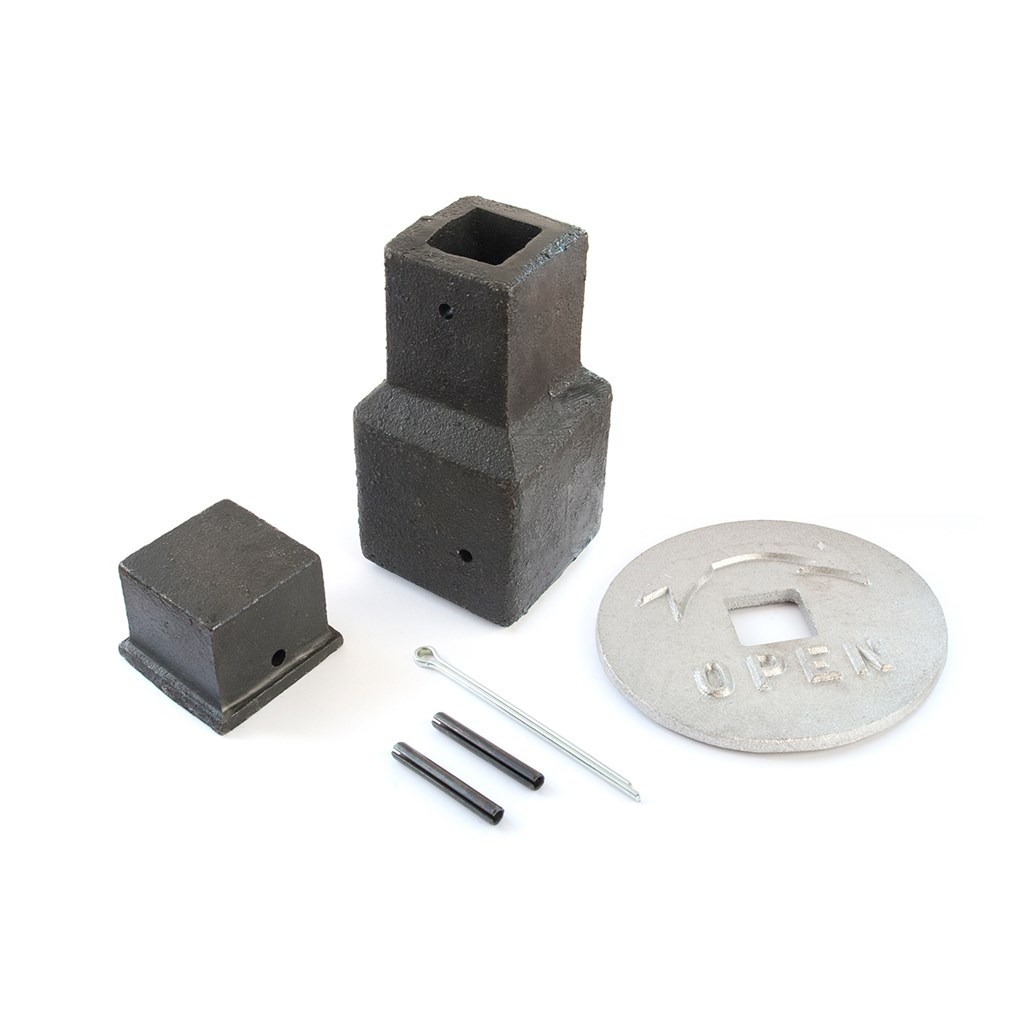

Valve Extension Stem Kit

• Make your own extension stems to the exact required length quickly
• Great to have in stock in case of a sudden need for more stems
• Ideal for gate valves
• Centering ring helps keep debris from falling to the bottom and doubles as opening direction indicator
• Standard 2” square nut on top and 2” socket on bottom
• All hardware and instruction included
• Stems available in steel or 304/316 stainless steel

*1” square cold rolled steel bar stock not included

Valve Floor Stand

Indicators vs Floor Stands

Download

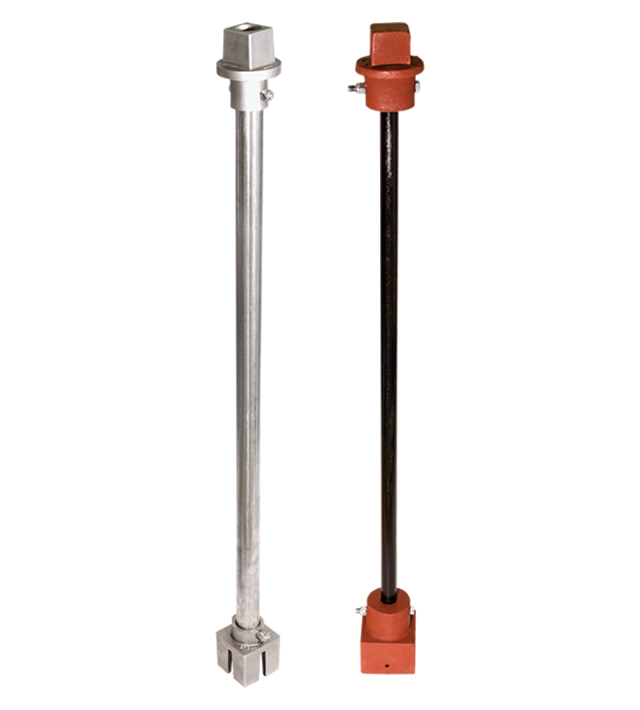

Valve Extension Stems

Material

• Carbon
• 304/316 Stainless Steel
• Round bar stock or pipe

Sleeve Couplings

• Requires no extra components. All hardware is included.
• Easy to disassemble/reassemble
• Available in a large range of diameters or custom to your application
• Offered in 304 or 316 stainless steel and cast iron

U-Joints

• Useful in offset valve applications or for difficult to reach valves
• Can be supplied with boot to help maintain lubrication for optimal operation
• Offered in steel or stainless steel

Stem Guides

Features & Benefits:

• Prevents stem from buckling or bending
• Custom bore size tailored to your application
• Adjustable in two directions by length and lateral wall mounting
• Rugged cast design offers longevity and aesthetic appeal
  • New Split Brushing Stem Guide allows for easier installation of your valve extension stem
  • Bushing is available in bronze or UHMW

Models:

• Small (S)
• Large (L)
• Extra Large (XL)

Materials:

• Cast 316 Stainless Steel
  • Enhances corrosion resistance and adds strength
• Cast Ductile Iron
  • Lightweight (compared to cast iron), long-lasting and resistant to breaking/cracking

Customizations:

• Bushing materials
• Add bushing in the bore
• Sizes and configurations

Hand Wheel

Features & Benefits:

• Simple design costs less and requires low maintenance (compared to bevel actuation)

Materials:

• Cast Iron (13” & 18”)
• Cast Aluminum (16” & 18”)
• Cast Stainless Steel (14”)

Custom Options:

• Spinner for faster, easier operation

Floor Box

Features & Benefits:

• Floor boxes are installed in a concrete floor or slab, and offer a non-obstructing point of operation for the valve. These should only be used with non-rising stem valves.

Material/Sizes:

• Cast iron

Customizations:

• Bronze bushing bored to specification
• Field adjustable to 8”, 10”, or 12” floor thickness

 Troy Valve’s own grease fitting (remote lubrication system) makes maintenance of your t-valve quicker and easier by eliminating the need to climb into the tank or drain it each time the valve needs lubricated. Simply inject the grease using a grease gun, and it will be pumped directly down to the proper location on the slip tube. The grease fitting helps keep the companion flange working when routinely exposed to atmosphere. It is also ideal for use in a dry application.
